Prefabrication experiments - 447 - Mass Affordability - 08 - Small Serial Houses





Modest serially made houses have demonstrated the potential application of industrialization to dwelling supply. Using mass-produced modular metal panels and a steel frame led to one of the most famous prefabricated kit house experiments of the twentieth century: The Lustron House promised to achieve in housing what the assembly line and folded plate metal had successfully brought to Ford co. A streamlined process of scaling supply chains to produce frames, panels and components in an easy to deliver and assemble kit would make quality houses economical.



Production of Lustron began in the United States in the late 1940s, but never attained the commercial success that had been championed by investors and government policy underwriting steel's mass application in civilian use in the shadow of the second World War. The underlying concepts of Lustron explored by its promoters had also been part of architectural fantasies and budding pedagogies.



One proposal, envisioned by Marcel Breuer, The Small Metal House (Kleinmetal haus) designed in 1926 prefigured the building materials and coordinated systems used for Lustron but with a specifically modern aesthetic. The minimalist geometry and aesthetic epitomized Bauhaus training studied as formulas for bringing quality architecture to the masses. A starting point for a modular pattern book of houses with each dwelling design using the basic components to develop personalized plans according to user needs would, today, be considered as mass customization or even as an innovative platform theory applied to housing.



Revolution 4 Architecture’s Modern Modular and a growing list of other contemporary architects argue for platform modularity to democratize good design at low cost; the architect’s vision is disseminated among many consumers. What is usually thought of as unaffordable (mandating an architect to design a custom home) becomes a marginal expense as architectural prowess, vision and genius is brought to the series or «models». Once the prototype is perfected, its principles are applied en masse. The small metal house provides a vision into the industrial serialization of architecture by componentizing and aggregating organizations into patterns. Like many modern architects it seems that Breuers’ mass customizable home was only a century ahead of its time.

left: The Small Metal House ; center: Lustron ; right: Modern Modular

Préfabrication experiments - 446 - Mass Affordability - 07 Low-tech Modular





Making housing affordable through industrialized construction ought to be a straightforward undertaking. Large numbers of repeating units scaled and patterned over easy to put together systems can be applied massively. Previous blog posts discussed mobile homes, lightweight timber framing or even large concrete panel systems in pre and post war Europe. All deployed a simple but effective recipe: Sharing building systems among numerous projects and across contexts requires less design resources and can further be democratized in a type of sharable housing kit outlined by basic parts tweaked to respond to functional and regional parameters.



British architect Walter Segal introduced DIY open frame structure to 20th century architectural practice Self-build and similar ideas can be traced to Japanese traditional post and beam structures repeating dimensions and principles to achieve an efficient and resilient housing supply.    Elemental Architects’ Incremental Housingreaffirms these simple principals of mass-producing parts adaptable enough to be arranged and even rearranged according to needs in an open-source design strategy.



A recent proposal by Bernardo Horta for a co-housing community in Brazil, the Cumbe Housing Project, outlines a skeletal post and beam structure to shape modular living units that can be used as stand-alone micro dwellings or combined in a multidirectional framework to create multi-room or even multi-flat dwellings. The bolted columns and beams frame a double shed-roof portal frame section. Gable ends could be combined with other modular units to organize a linear row-housing strip. Precut timber parts are used for the structure, recycled tires filled with concrete are suggested for foundations and end walls are infilled with wattle and daub influenced by vernacular building traditions. Front and back elevations are left to be customized according to occupant needs and could feasible be infilled with low-tech local materials that do not need any intensive labor. Horta’s proposal intends that all other required elements, doors, windows and other building pieces be added and adapted according to local supply chains and even changed, replaced or reconfigured over time as owners’ economic conditions and product supply evolves.

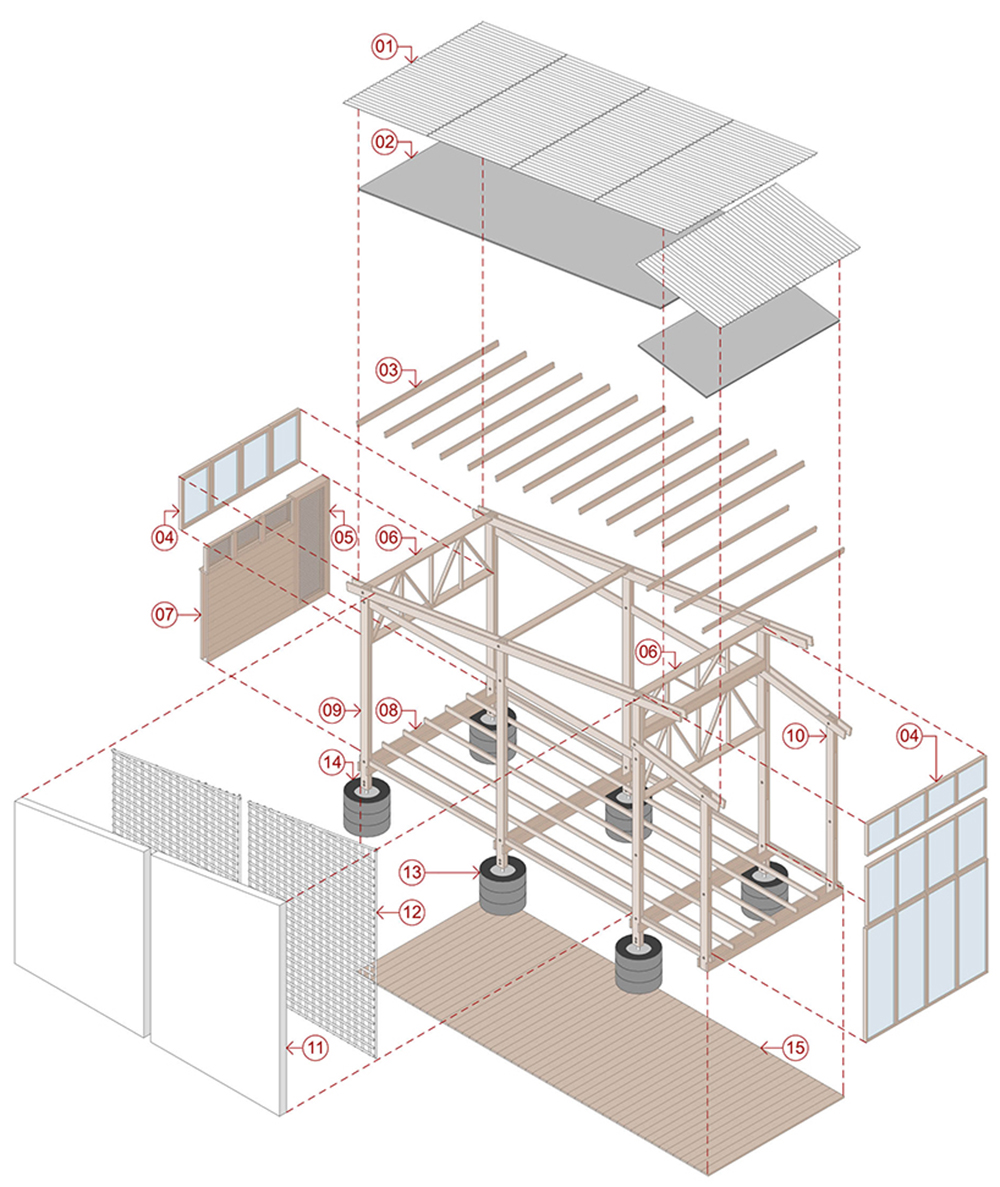

Cumbe Housing system components

Prefabrication experiments - 445 - Mass Affordability - 06 - Typical Cell



Recognized for his contributions to the Russian avant-garde and Suprematist Movement in the early 20th century, El Lissitzky, a polyvalent designer/artist, embodied a total work approach to developing his ideas.  The designer as an actor for social change capable of improving living conditions was at the heart of his artistic and design positions. While his list of built architectural works is short, consisting of only one building (a printing plant), he left a long trail of prospective explorations and their representations. One of his experimental paper projects, at the intersection of housing, architecture, industrial and furniture design, the F-type Residential Cell (1927) projected a reproducible dwelling unit studied to harmonize all dwelling functions in a comprehensively integrated design.



Built-in furniture composed the flat’s architectural arrangement around a split-level section accessible from a lower floor.  The potentially mass-manufactured unit was articulated around a two-flight stairwell dividing day and night spaces. The two-level organization shifted from the ordinary one floor flat showcasing that stacked units in a housing block could include multiple levels with the spatial qualities found in single-family dwellings. The modular multifunctional built-in services would facilitate production and lower construction costs as all cabinetries would be made from the same basic components and catalogued design options. The cell's amenities previewed a future for the house or dwelling as an ergonomic machine capable of responding to modern needs. Storage walls, transformable cabinets, movable partitions, all presented a flexibility and changeability adaptable to varying living patterns.



Foreshadowing modern kitchen design, the F-type was equipped with modular cabinets that could be combined, based on the same dimensionally coordinated cases, to arrange multiple organizations. Looking at housing from the perspective of a cabinet or furniture design scales and applies the production and productive attitudes of component modularity to architecture; Built-ins not as onsite built elements but embedded in typical flats. Borrowing and adopting synergies from industrial design to achieve truly holistic architectural works, that could be repeated en masse to achieve what industrialization has rendered in every other industry apart from architecture: productivity, greater quality and reduced costs.

Typical cell model photos

Prefabrication experiments - 444 - Mass Affordability - 05 - Rational flexibility

Providing accessible and affordable dwellings requires the rationalization of expenditures through a coherent spatial, structural and functional organization along with efficient material use optimizing each square centimeter of built form. This parsimonious vision outlines the fundamental aspects of the “core-house” as a tool for expandable growth based on user needs and agency. Controlling costs through service core principles has been applied to single-family dwellings with some success (https://prefabricate.blogspot.com/2018/12/prefabrication-experiments-182.html). These same ideas have also been applied to office towers or multi-unit residential edifices to offer opportunities to moderate construction costs while offering systemic adaptable planning.



Typified by a 10 storey multi-unit prototype built in France in the early 1970s by the modernist architect sibling team of Luc and Xavier Arsène-Henry, the Montereau residential core-tower borrows from 20th century office building organizations and blends it with adaptable housing design. The pinwheel plan is configured around a vertical circulation core. From the centre point, long spanning concrete slabs structure 4 radiating unit-spaces per floor arranged on a 900 mm grid. Each rectangular flat 13.5m x 6 m is then articulated to the floor plan by a mechanical vertical conduit used for plumbing and electrical service distribution.



Around these service hubs, each unit can be composed to relate to two different orientations with multiple configurations. Further, core-adjacent spaces can be fitted-out by occupants using the predetermined 0.9x 0.8 m channel as an evolving planning device. An exterior balcony bounds the floor plate providing exterior spaces for each apartment. All rooms and living spaces’ dimensions are a multiple of the 900 mm grid and were divided by prefabricated stressed skin panels held in place by removable compression screws making spatial arrangements flexible, malleable and adaptable. Architects envisioned typical floor plans for each occupant to adopt or modify according to their own living patterns.



Not designed specifically with low cost in mind, the frugal planning was geared toward changeability. However, the same principles that make the space flexible, free and open floor plates, unfinished spaces, repeating mechanical cores, a rigorous structural grid, standardized interior systems along with predetermined parameters to control change can also help reduce construction costs.

Montereau flexible planning scheme
